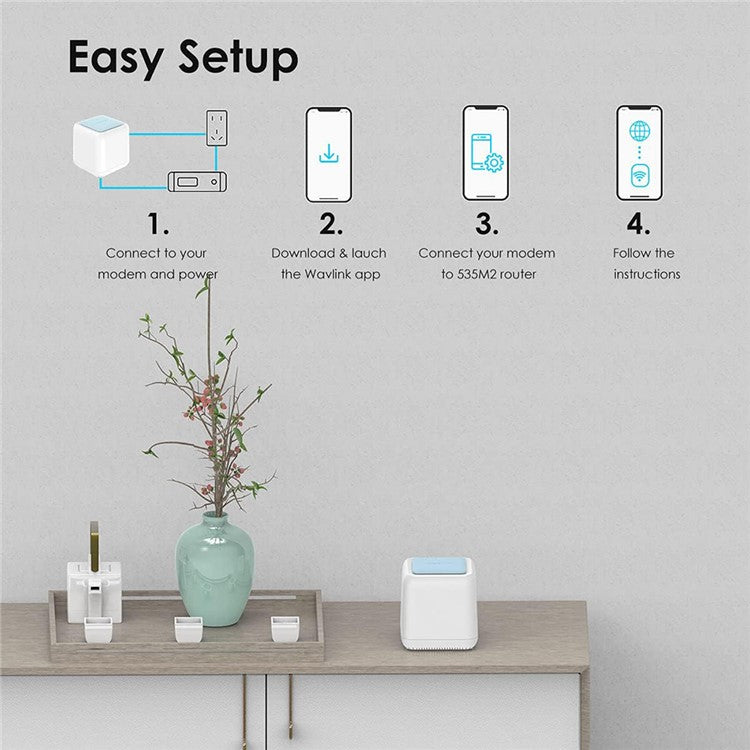

• Free installation, automatic networking, easily implement whole house WiFi coverage
• Complies with IEEE 802.11ac/a/n/g/b standards
• Simultaneous 5G 867Mbps and 2.4G 300Mbps connections for 1167Mbps of total available bandwidth
• Mesh WiFi solution is built to connect with each other in a single network configuration. If one Node loses connection, the remaining units will reestablish Internet connection, automatically and seamlessly
• Mesh WiFi System chooses the fastest path for device connections and keeps your network running as fast as possible
• 4 x Internal antennas provide omnidirectional stable signal and superior wireless coverage
• Provides 10/100/1000Mbps Auto-Negotiation Ethernet WAN/LAN ports
• Supported by PPPoE, Dynamic IP, and Static IP access to the Internet
• Support touch link function

Specification:

• Hardware:

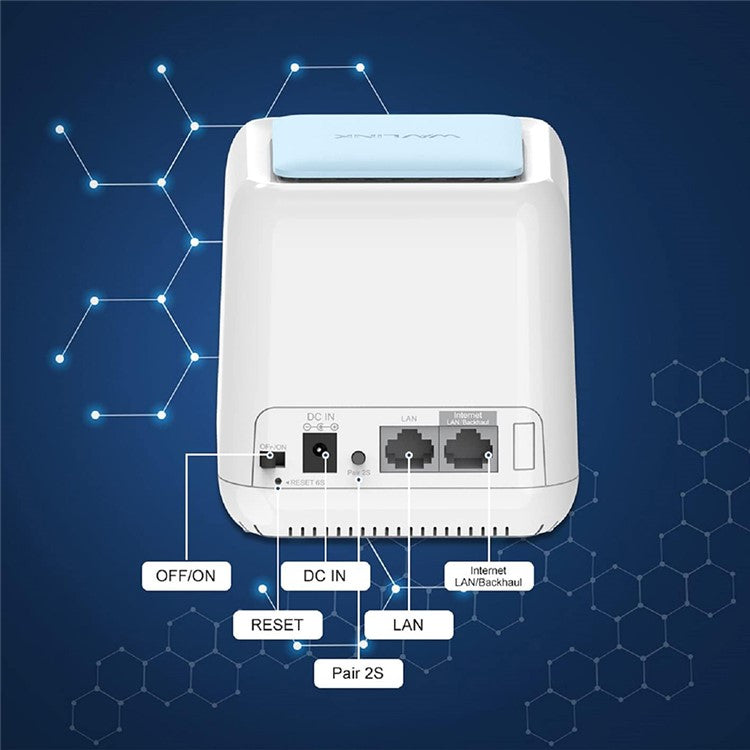

• Ports:
• 1 x10/100/1000Mbps WAN PORT
• 1 x10/100/1000Mbps LAN PORT
• Button: 1 x Reset, 1 x Pair,1 x Touch Link, 1x POWER ON/OFF switch
• LED: 1 x LAN, 1 x WAN,  1 x Status (Blue +Red)
• Solution: MT7621DA+MT7613B+MT7603E
• Flash: 128Mb
• DDR3 RAM: 1024Mb
• Power Supply: DC12V 1A
• Rated Voltage/ requency: input:100-240 Va.c. 50/60Hz
• Wireless:
• Standard: IEEE 802.11b/g/n/a/ac
• Frequency band: 2.4GHz, 5GHz,
• Transmit Power: 2.4G 19DBm MAX; 5G 20DBm MAX
• Sensitivity: 802.11b: -93dBm /802.11g: -73dBm / 802.11n: -68dBm
• Speed:
• 802.11ac: up to 867Mbps, 802.11n: up to 300Mbps
• 802.11a: up to 54Mbps, 802.11g: 54Mbps,802.11b: 11Mbps
• Wireless Security: WPA/WPA2Mix, WPA-PSK, WPA2-PSK encryption
• Antennas: 4x3dBi Omni Directional Antennas
• Distance: Indoor 1000~1500sq.ft/Each (According to the actual environment change)
• Environmental:
• Operating Temperature: 0ºC~40ºC
• Storage Temperature: -10~70℃
• Relative Humidity(Operational): 10%~90%,non-condensing
• Relative Humidity(Storage): 10%~90%,non-condensing
• Software:
• WAN Type: PPoE, Dynamic IP, Static IP
• DHCP Settings: Server, Client
• Function: DHCP Server; Wireless Setting
